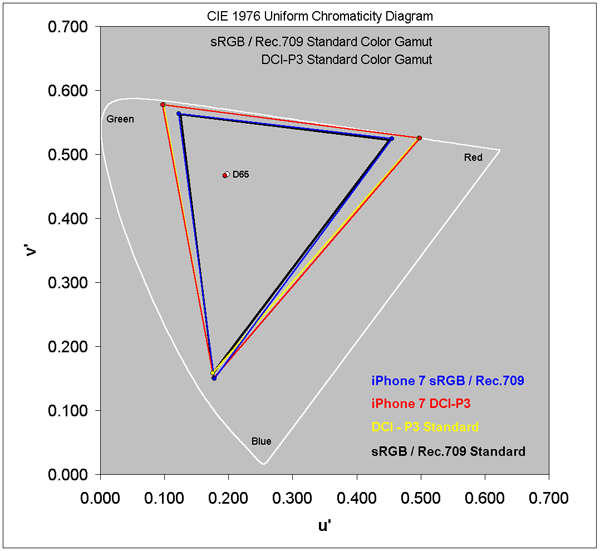

Figure 1 below shows the measured Color Gamuts for the
main Apple iPhone 7 Color Gamuts
along with the Standard DCI-P3 Color Gamut in Yellow
and the Standard sRGB / Rec.709 Color Gamut in Black.
The outermost white curve is the limits of human color vision -
the horseshoe is the pure spectral colors and the diagonal is the Line of Purples.
A given display can only reproduce the colors that lie inside of the
triangle formed by its primary colors.
Accurate White Points
The dots in the center are the measured color of White for each of the
Color Gamuts along with the D65 Standard White,
which is marked as a white circle.
To deliver accurate image colors the display must match both
the Standard Color Gamut and the Standard Color of White.
Accurate Color Gamuts
The wide native iPhone 7 Color Gamut is an accurate match
to the DCI-P3 Standard Color Gamut
that is used to produce the new 4K UHD TV content.
The smaller Color Gamut is an accurate match
to the sRGB / Rec.709 Standard Color Gamut
that is used for most existing consumer content.
Both of the iPhone 7 Color Gamuts are a close match to the Standard Gamuts.
for the Absolute Color Accuracy measurements for each Color Gamut.
