Light Spectra for the iPad mini 3 and iPad Air 2

The Backlights for LCD displays are white LEDs, which are made by using a Blue LED together with a yellow phosphor to transform some of the light for the Red and Green primaries. The spectrum of an LCD display is just the spectrum of its white LED Backlight filtered through the individual Red, Green and Blue sub-pixel filters within the LCD panel, resulting in broad rolling spectra for LCDs.

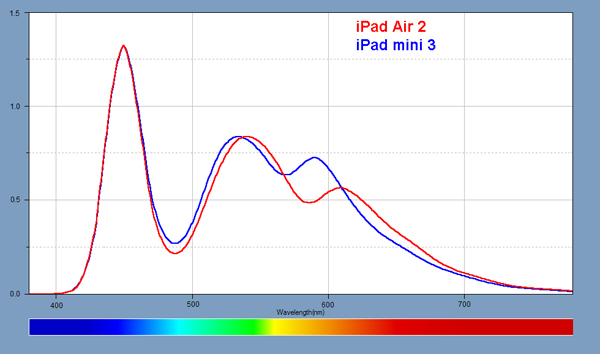

Display White Emmision Spectra Light Spectra for each of the displays

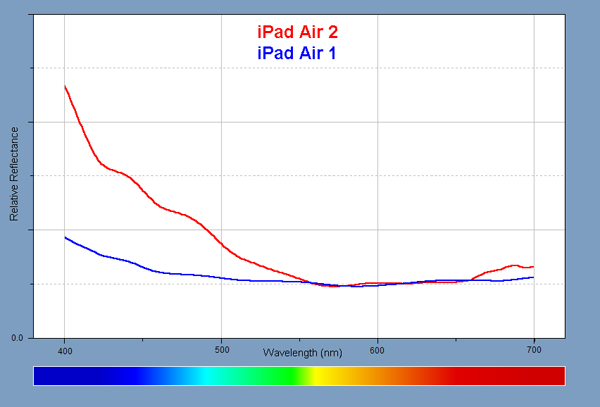

Screen Reflectance Spectra
Normalized for 550 nm
Reflectance Spectra for each of the displays
