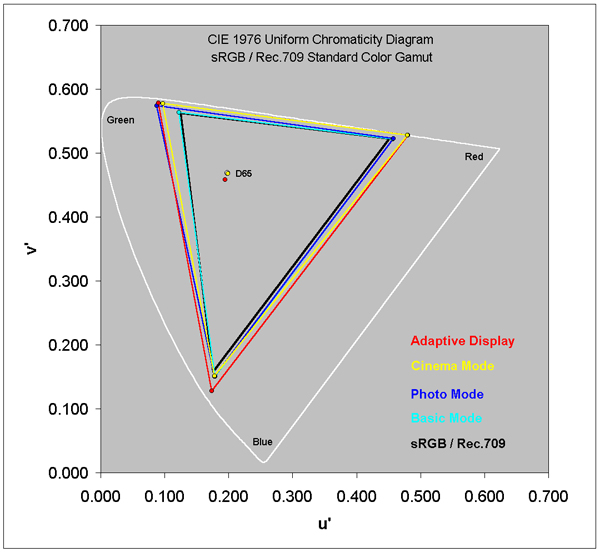

Figure 1 below shows the measured Color Gamuts for the Galaxy Note7 Screen Modes
along with the Standard sRGB / Rec.709 Color Gamut in black.
The outermost white curve is the limits of human color vision -
the horseshoe is the pure spectral colors and the diagonal is the Line of Purples.
A given display can only reproduce the colors that lie inside of the
triangle formed by its primary colors.
Accurate White Point
The dots in the center are the measured color of White for each of the
Screen Modes along with the D65 Standard White,
which is marked as a white circle.
To deliver accurate image colors for standard consumer photo and video content
the display must match both
the Standard Color Gamut and the Standard Color of White.
Four Galaxy Note7 Screen Modes
screen mode is an accurate match to the DCI-P3 Standard Gamut
that is used for the new 4K UHD TV content.
screen mode is an accurate match to the sRGB / Rec.709 Standard Gamut
that is used to produce most current consumer content.
screen mode is an accurate match to the Adobe RGB Standard Gamut
that is used with high-end digital cameras and advanced imaging applications.
screen mode has the Widest Color Gamut and
is intentionally vivid.
for the Absolute Color Accuracy measurements for the Screen Modes.
Note that some of the Screen Modes are similar and their Gamuts
and White Points overlap in the Figure.
The white circle marking the D65 White Point is covered by the very accurate
White Points for the AMOLED Cinema, Basic, and AMOLED Photo screen modes.
The Adaptive Display screen mode is intentionally bluish.
