Flagship LG OLED TV and Samsung LCD TV Absolute Color Accuracy Plots

Reference sRGB / Rec.709 Colors
Over 99 percent of all current consumer content is based on the sRGB / Rec.709 Color Gamut Standard. Figure 2a below shows 21 Reference Colors for the Standard sRGB / Rec.709 Color Gamut as White, Gray, and Black circles, The 10 Black circles are the 100 percent fully saturated colors on the periphery of the Gamut triangle. The 10 Gray circles are the 50 percent saturated colors that are exactly midway between the White Point and the 100 percent saturated colors on the periphery. The White circle is the White Point with zero percent color saturation. The colors shown in Figure 2a have been accurately calculated to show the real colors within the sRGB / Rec.709 Gamut - the colors shown in most published Color Gamuts are wildly incorrect.

Uniform Color Diagrams and Reference Colors
All color measurements are plotted on 1976 CIE Uniform Color Diagrams.
Note that the older 1931 CIE Diagrams that are published by many reviewers are highly non-uniform and are meaningless for Color Accuracy. Also the often referenced NTSC Color Gamut is from 1953 and has been obsolete for over 30 years so stop referencing it. The Reference Colors in Figures 2b-2c are all shown as Black circles and the measured Colors for each of the Screen Modes are shown as Red circles. Color Errors smaller than the appropriate JNCD are not visually noticeable. The 1 JNCD and 3 JNCD Errors are discussed next and are shown in the Figures below.

Just Noticeable Color Difference JNCD
The on-screen colors produced by any display can be measured using a Spectroradiometer together with our DisplayMate Test Patterns. The accuracy of the colors can then be calculated using the 1976 CIE Uniform Chromaticity color space and compared to the eye's sensitivity to color. We present the color accuracy and errors here in terms of MPCD Minimum Perceptible Color Difference or JNCD Just Noticeable Color Difference, where 1 MPCD = 1 JNCD = Δ(u'v') = 0.0040 on the CIE 1976 Uniform Chromaticity Scale.

Color differences less than 1 JNCD are visually indistinguishable, while values greater than 1 JNCD are visually noticeable when the two colors are touching on-screen. When the colors are not touching and are further apart, the visual threshold for Just Noticing a Color Difference is higher. Here we will use 3 JNCD for the threshold of a visually noticeable display color difference. The 1 JNCD and 3 JNCD sizes are shown in the Figures below. Any Display Color Error less than 3 JNCD on a display is not visually noticeable and appears perfectly accurate to the eye.

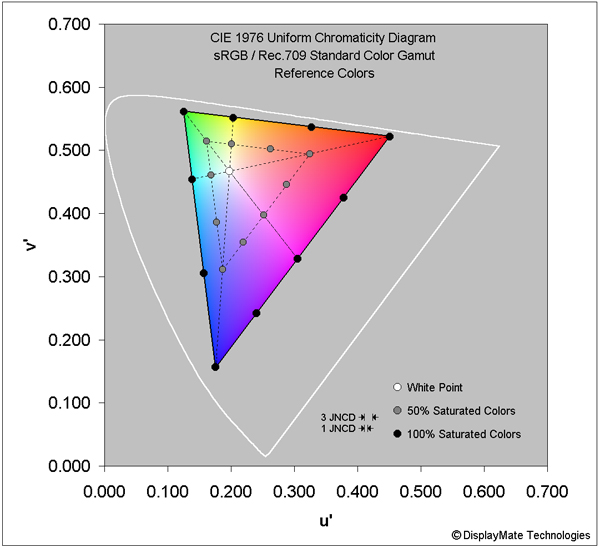

Figure 2a.   sRGB / Rec.709 Reference Colors
Note that Complementary Colors lie directly across from one another through the White Point.
The 50% Saturated Colors are midway between White and the 100% Saturated Colors.
Reference Colors for sRGB / Rec.709

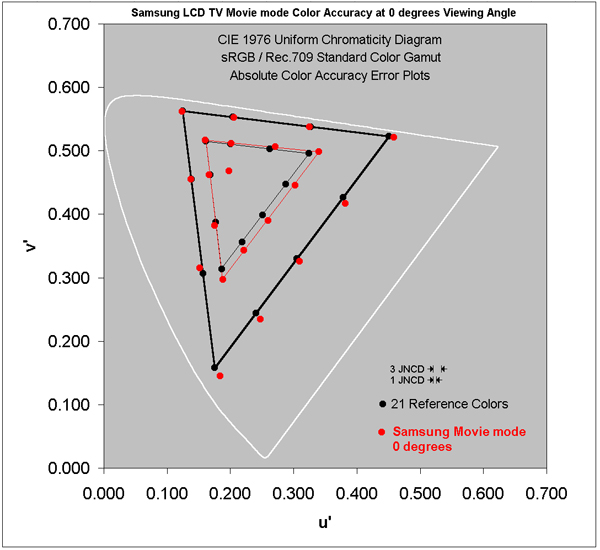

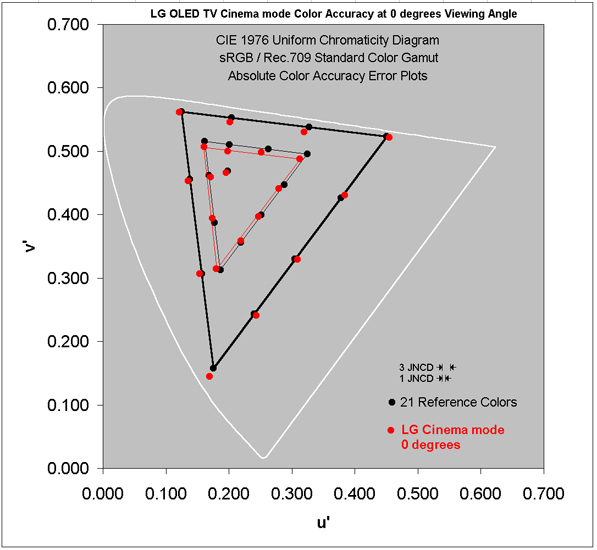

Plotted Absolute Color Errors for the display Plotted Absolute Color Errors for the display
