Flagship LG OLED TV and Samsung LCD TV Changes with Viewing Angle

The Figures below show the changes in the Image Colors, Screen Brightness, Black Brightness, and Intensity Scales from the center of the screen 0 degrees viewing position.

Changes in Image Colors with Viewing Angle
Shown for the sRGB / Rec.709 Primary Colors but the same effects apply to all color mixtures.
These are the Primary Colors for over 99 percent of all current consumer content.

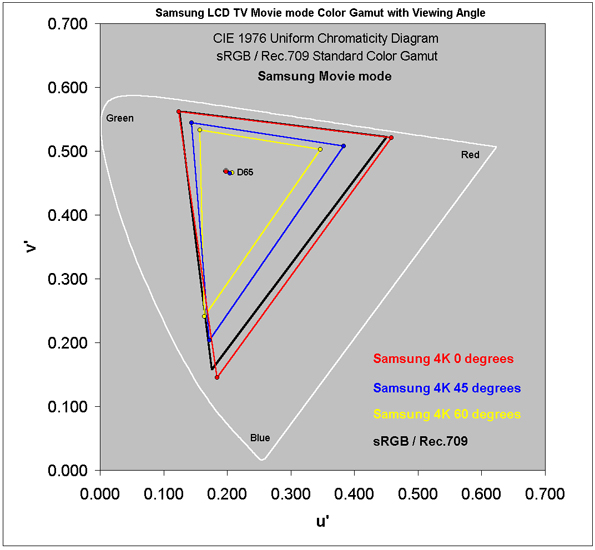

The Samsung LCD TV shows large color changes with Viewing Angle.

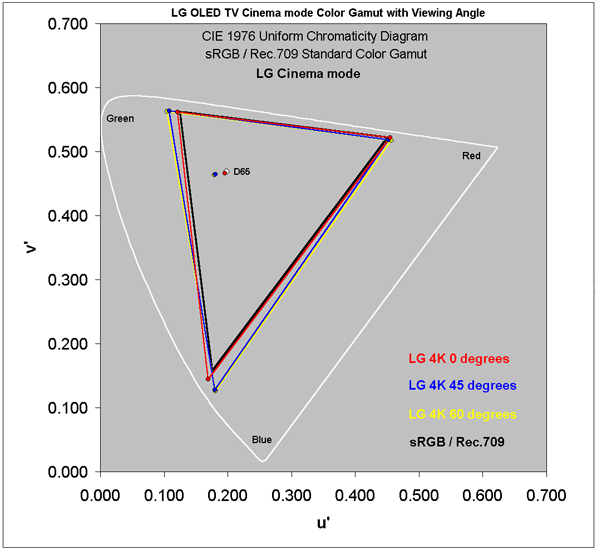

The LG OLED TV shows small color changes with Viewing Angle.
Color Gamut Change with Viewing Angle Color Gamut Change with Viewing Angle

Changes in Screen Brightness and Black Brightness with Viewing Angle
The Samsung LCD TV shows large changes with Viewing Angle.
The LG OLED TV shows much smaller changes in Brightness with Viewing Angle.

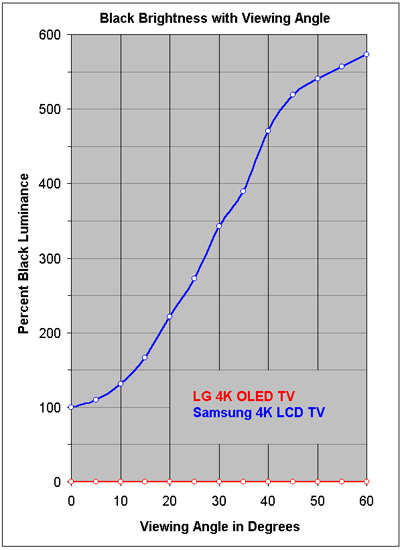

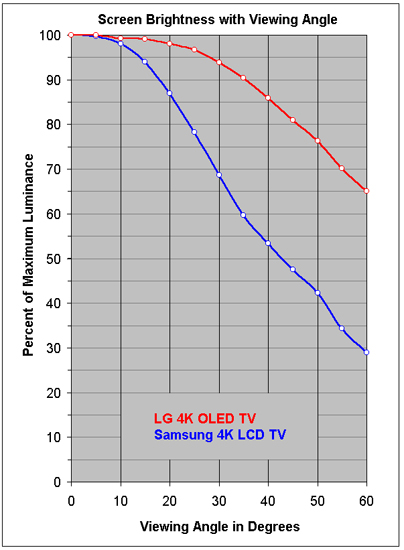

Brightness Change with Viewing Angle Black Level Change with Viewing Angle

Changes in the Intensity Scale with Viewing Angle

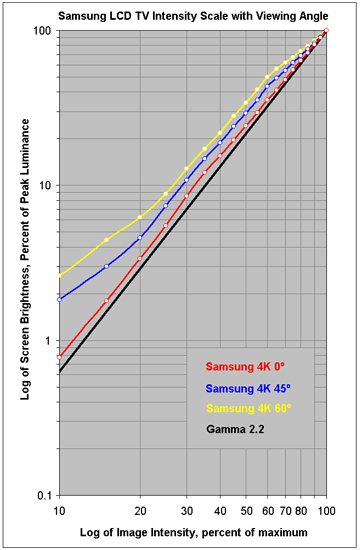

The Samsung LCD TV shows a large change in the Intensity Scale with Viewing Angle.

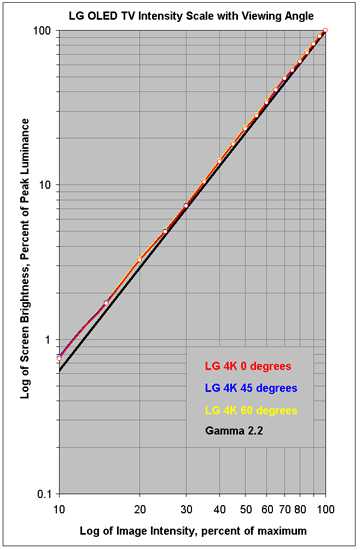

The LG OLED TV shows shows almost no change in the Intensity Scale with Viewing Angle.
Intensity Scale Change with Viewing Angle Intensity Scale Change with Viewing Angle
